Full DC inverter VRF system GCHV pro 14hp

This is a high-performance full DC Inverter VRF (Variable Refrigerant Flow) system designed for efficient heating and cooling in commercial and large residential spaces. Leveraging advanced EVI (Enhanced Vapor Injection) technology and premium components, this system delivers exceptional stability, energy efficiency, and flexible operation to meet diverse environmental demands.

Features:

Malfunction Forecasting

Thanks to the Al cloud server, malfunction can be forecasted when system running parameter is abnormal.

Technician can be sent to site to check the system before it stops.

Wide Outdoor Operation Range

Due to EVI technology, CHV PRO heating performance increased by 35% compare to conventional VRF system. Due to EVI technology, CHV PRO still has 85% of rated capacity even in -15℃.

Refrigerant Cooling Design

We use refrigerant to cool down inverter modular board to keep it in a safe condition even when outdoor temperature is up to 55℃.

Refrigerant Status Detection

Built-in with smart refrigerant auto check function, which can give suggestion about refrigerant status.

Different code means different refrigerant status.

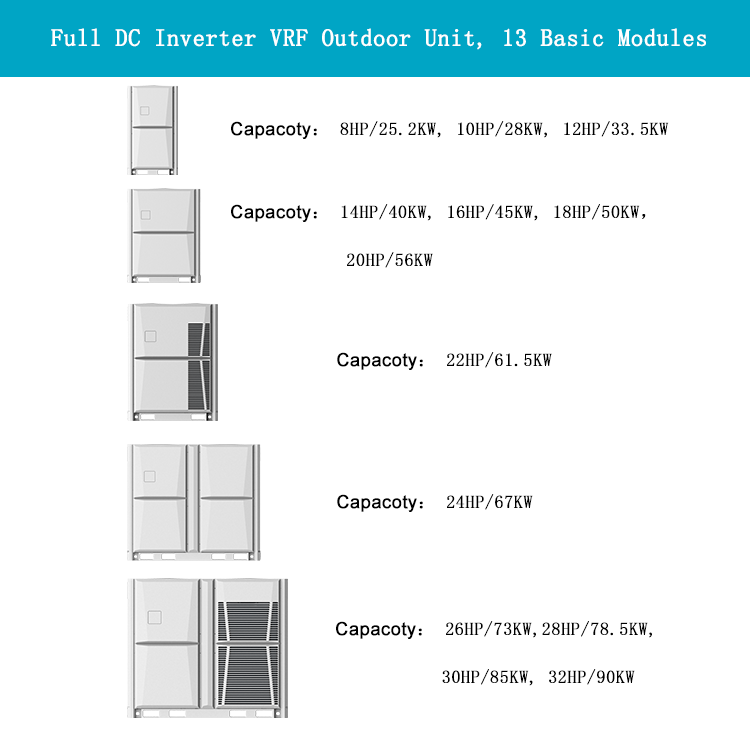

Maximum 96HP:

Max.3 outdoor units can be freely combined to become a larger unit. the maximum capacity of single system is 96HP.

*:when 4 outdoor units are combined, the single unit capacity can not exceed 24HP.

Auto Charging Refrigerant(optional)

CHV PRO can customize with auto refrigerant charging function, additional solenoid valve will be added in gas pipe, and outdoor unit will  control the valve to charge refrigerant.

Wireless Communication(optional):

Wireless communication between indoor units.

Wireless communication between indoor unit and outdoor unit.

Electrical Lock Function(optional):

In case of end user doesn't pay as contract, electrical lock function can be used to stop VRF system, and end user can not start the system without permission.

System can be unlock with password by authorized technician.
